画像と言葉の知識をロボット動作へつなぐRT-2

RT-2

保存した記事を見るこのブラウザに保存します。無料会員で端末間の同期・フォルダ整理
原論文の図

RT-2の原論文から掲載した図です。細部はクリックして拡大できます。

原論文の図の説明を読む

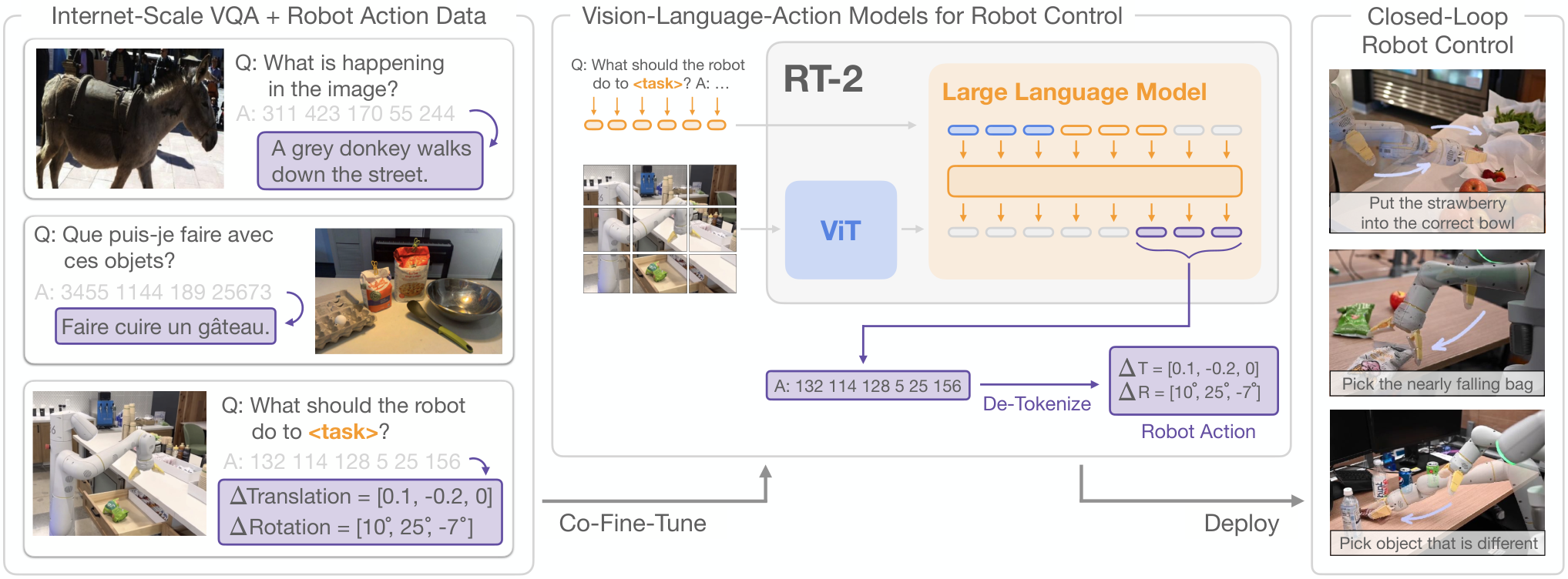

Figure 1 : RT-2 overview: we represent robot actions as another language, which can be cast into text tokens and trained together with Internet-scale vision-language datasets. During inference, the text tokens are de-tokenized into robot actions, enabling closed loop control. This allows us to leverage the backbone and pretraining of vision-language models in learning robotic policies, transferring some of their generalization, semantic understanding, and reasoning to robotic control. We demonstrate examples of RT-2 execution on the project website: robotics-transformer2.github.io .

出典:RT-2 / arXiv ↗

概要

  • 腕の動作を記号列にし、画像と言語を扱うモデルから直接予測させる。
  • ウェブ由来の画像・言語課題とロボット実演軌跡を一緒に使って調整する。
  • 著者らは約6000回の評価で未知条件への改善を報告する一方、身体的な技能は実演データの範囲に制約されると述べる。
補足:編集した模式図で仕組みを確認する

VISUAL EXPLAINER

図でつかむ、RT-2の仕組み

左から右へ読む
  1. 01カメラ画像と指示
  2. 02動作記号を予測
  3. 03記号を動作へ変換
  4. 04ロボットが実行

原論文の説明をもとにした模式図です。処理の細部は省略しています。

研究の背景

画像と言葉を結び付けて学んだモデルは、物の名前や関係を読み取れる一方、ロボットには腕をどちらへ動かすかという具体的な指令が必要になる。両者を別々に扱うと、言葉の理解を細かな動作へどう反映するかが課題となる。

RT-2は、画像・言語モデルを直接ロボット制御に使う「視覚・言語・行動モデル」の一例である。初めて見る物や表現への対応力が、実作業での関心点となる。

手法

学習時には、ロボットの実演軌跡に付いた作業指示と、画像について質問に答えるようなウェブ由来の課題を一緒に使う。腕先の位置・向きの変化、つかむ部分の開き、終了指令を記号列に変え、言葉を出すモデルに次の動作として予測させる。連続値の動作は256段階に区切る。

実行時は、現在のカメラ画像と「リンゴを3へ移す」といった指示を入力する。モデルが出した動作記号をロボットの指令へ戻し、次の画像を見てまた指令を出す。この繰り返しを「閉ループ制御」と呼び、動いた後の状態を見て次の動作を決める方式である。

新規性

著者らの提案は、ロボットの動作を文章と同じ形式の「トークン」に置き換え、既存の画像と言語のモデルを、ウェブ由来の課題とロボット実演データで共同調整することにある。トークンはモデルが出力する記号の単位である。

これにより、画像の意味を扱う部分と動作を出す部分でモデルを共有する。新しい動作そのものを学ぶという主張ではなく、既習の把持・移動などを、未知の物や指示に応じて使えるかを検証している。

従来手法との違い

比較対象には、同じロボット実演データを使うRT-1、画像表現を事前学習したVC-1やR3Mを組み込む方式、画像と言語のモデルで対象位置の情報を加えるMOOがある。RT-2は動作そのものを出力記号にする点が異なる。

著者らは、見慣れた作業ではRT-1と近い成功率で、未知の物体、背景、環境を含む条件ではRT-1とMOOに対し平均で約2倍の結果だったと報告する。この差は評価条件と使ったモデルに結び付く。

実験結果

著者らは約6000回のロボット評価軌跡を用い、学習済みの作業と、未知の物体・背景・環境への一般化を調べた。見慣れた作業は200種類超、未知条件の評価は280種類超の作業を含む。比較対象は同じロボット実演データを使用した。

著者らの集計では、未知条件でRT-2の二つの主要モデルはRT-1とMOOの約2倍の結果だった。別のLanguage-TableシミュレーションではRT-2-PaLI-3Bが90±10、RT-1が74±13と報告する。評価環境の異なる数値を一つの成功率として混ぜないことが必要である。

応用の可能性

編集上の応用案 · 論文が実証した用途とは区別しています。

編集上の応用案:仕分け台で「数字の3の場所へリンゴを移す」という指示に従えるか試す。入力はカメラ画像と作業指示、出力は腕の移動、向き、つかむ動作を表す連続した指令である。

対象物と数字の位置を変えた試行を用意し、指示対象を正しく選ぶか、把持と配置が成功するかを別々に記録する。論文に示された数字や記号の理解を、限定された仕分け作業へ当てはめる編集上の応用案である。

応用先の候補からNauhに相談できます。

導入時の検証

導入時の検証案 · 対象データでの再評価が必要です。

導入時の検証案:既に行える把持と配置に作業を限定し、見慣れた物と初めて見る物を分けて試す。比較基準には既存の動作手順を置き、画像、指示、実行後の状態を毎回残す。

対象選択率、把持成功率、指定位置への配置率、指令の遅延を別々に測る。数字や記号を使う指示では、それを読めた場合と物理的に運べた場合を分けて集計する。作業条件を変えたときの失敗例まで確認してから用途を判断する。

限界と課題

著者らは、物の意味や指示の解釈が広がっても、身体的な技能はロボット実演データに含まれた範囲に制約されると述べる。最大のモデルはネットワーク越しの推論を使い、動作指令の頻度は毎秒1~3回と報告された。

編集上の確認課題は、指示対象の取り違え、配置先の誤認、通信を含む遅延、実際の作業台での成功率である。論文の一般化結果だけで、別の道具や未知の動作を安全かつ確実に実行できるとは判断できない。

応用先の候補
研究内容と応用案に基づく分類です。業界での導入実績を示すものではありません。

出典

元のタイトル・要旨を確認する(英語)

RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control

We study how vision-language models trained on Internet-scale data can be incorporated directly into end-to-end robotic control to boost generalization and enable emergent semantic reasoning. Our goal is to enable a single end-to-end trained model to both learn to map robot observations to actions and enjoy the benefits of large-scale pretraining on language and vision-language data from the web. To this end, we propose to co-fine-tune state-of-the-art vision-language models on both robotic trajectory data and Internet-scale vision-language tasks, such as visual question answering. In contrast to other approaches, we propose a simple, general recipe to achieve this goal: in order to fit both natural language responses and robotic actions into the same format, we express the actions as text tokens and incorporate them directly into the training set of the model in the same way as natural language tokens. We refer to such category of models as vision-language-action models (VLA) and instantiate an example of such a model, which we call RT-2. Our extensive evaluation (6k evaluation trials) shows that our approach leads to performant robotic policies and enables RT-2 to obtain a range of emergent capabilities from Internet-scale training. This includes significantly improved generalization to novel objects, the ability to interpret commands not present in the robot training data (such as placing an object onto a particular number or icon), and the ability to perform rudimentary reasoning in response to user commands (such as picking up the smallest or largest object, or the one closest to another object). We further show that incorporating chain of thought reasoning allows RT-2 to perform multi-stage semantic reasoning, for example figuring out which object to pick up for use as an improvised hammer (a rock), or which type of drink is best suited for someone who is tired (an energy drink).

論文本体の取得範囲に基づく解説。AIが作成した未校閲の記事です。性能の数値は著者の評価条件に依存します。応用例と検証計画は編集上の提案です。解説更新:2026-09-29
