坑井の音響画像から崩壊域を抽出し、紛らわしい候補を減らすBreakout-picker

Breakout-picker: Reducing false positives in deep learning-based borehole breakout characterization from acoustic image logs

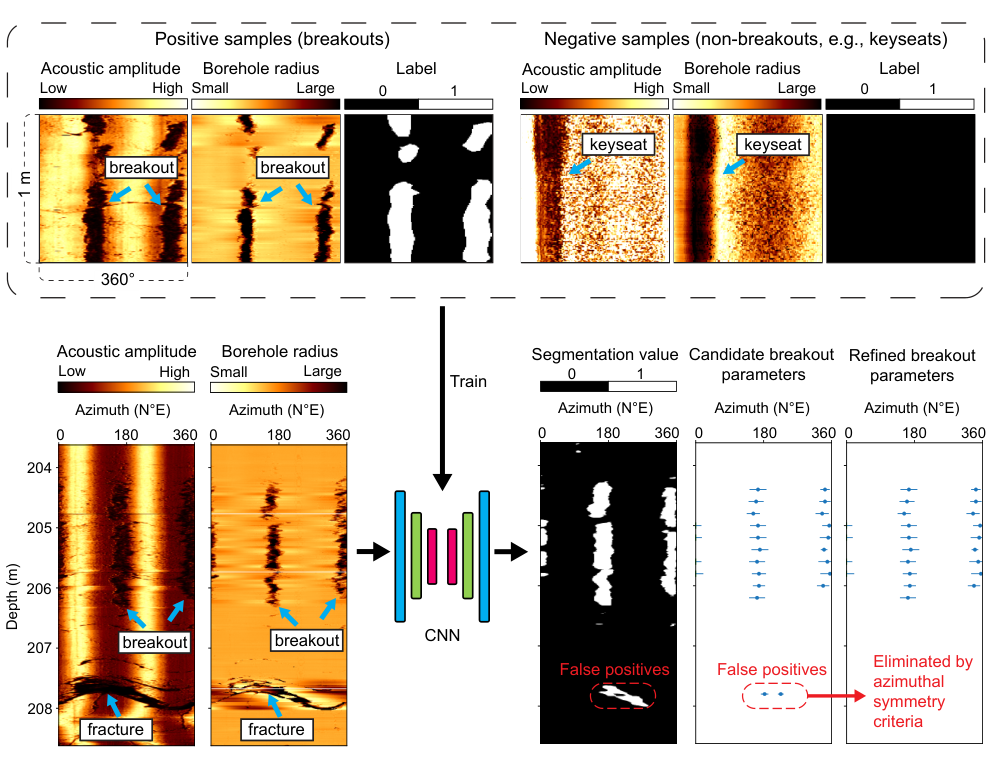

Borehole breakouts are stress-induced spalling on the borehole wall, which are identifiable in acoustic image logs as paired zones with near-symmetry azimuths, low acoustic amplitudes, and increased borehole radius. Accurate breakout characterization is crucial for in-situ stress analysis. In recent years, deep learning has been introduced to automate the time-consuming and labor-intensive breakout picking process. However, existing approaches often suffer from misclassification of non-breakout features, leading to high false positive rates. To address this limitation, this study develops a deep learning framework, termed Breakout-picker, with a specific focus on reducing false positives in automatic breakout characterization. Breakout-picker reduces false positives through two strategies. First, the training of Breakout-picker incorporates negative samples of non-breakout features, including natural fractures, keyseats, and logging artifacts. They share similar characteristics with breakouts, such as low acoustic amplitude or locally enlarged borehole radius. These negative training samples enables Breakout-picker to better discriminate true breakouts and similar non-breakout features. Second, candidate breakouts identified by Breakout-picker are further validated by azimuthal symmetry criteria, whereby detections that do not exhibit the near-symmetry characteristics of breakout azimuth are excluded. The performance of Breakout-picker is evaluated using three acoustic image log datasets from different regions. The results demonstrate that Breakout-picker outperforms other automatic methods with higher accuracy and substantially lower false positive rates. By reducing false positives, Breakout-picker enhances the reliability of automatic breakout characterization from acoustic image logs, which in turn benefits in-situ stress analysis based on borehole breakouts.
