移動車両による電波遮断を予測し、基地局・ビーム・通信方式を選ぶ

QuaMoE-DRF: Proactive Beam and Rate Adaptation via Multimodal Dynamic Radio Map Forecasting in ISAC Networks

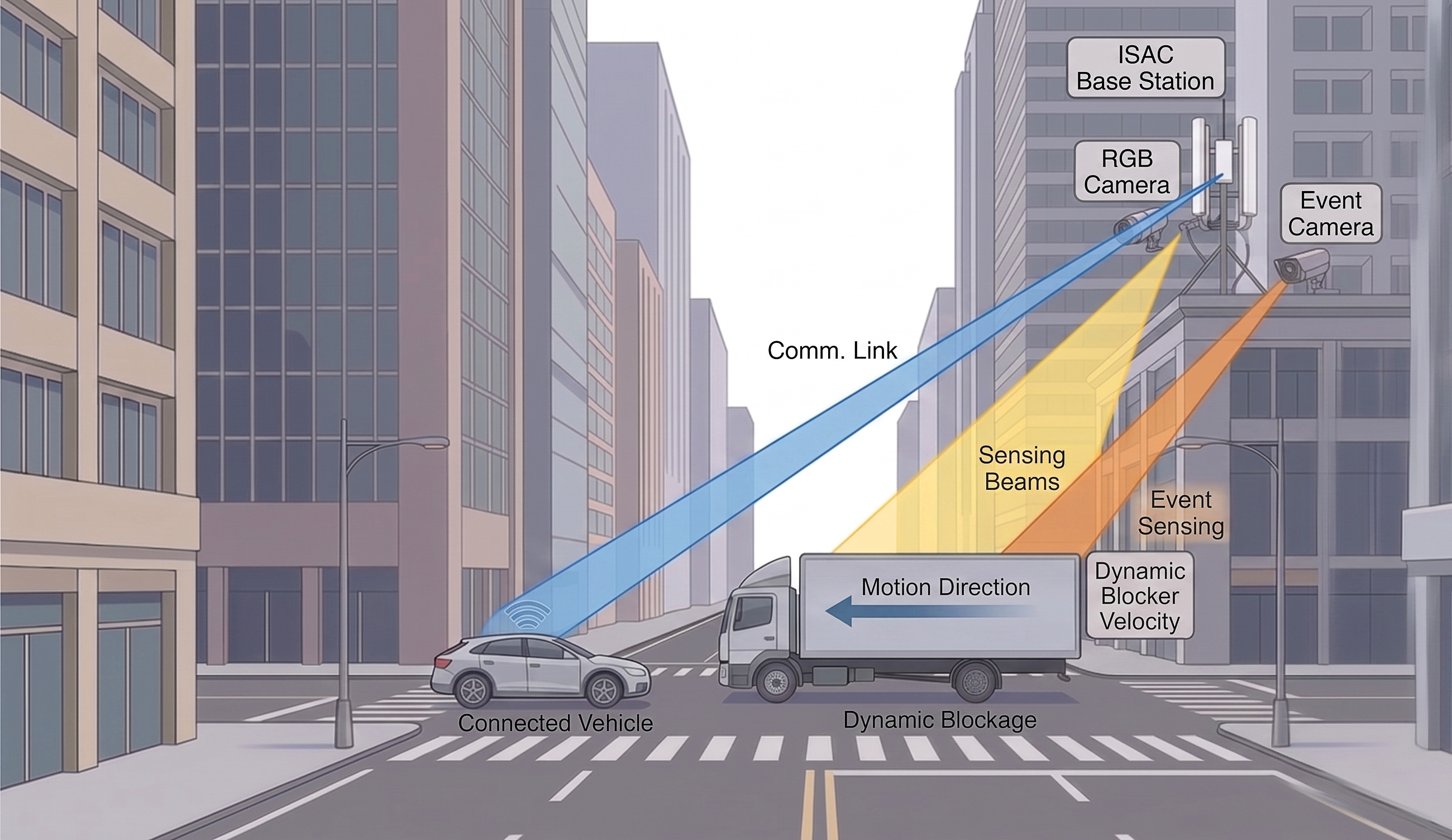

Static radio maps provide location-dependent propagation priors, but they cannot capture short-term blockage caused by moving objects. Direct sensing-assisted beam prediction is also limited because a beam index discards SINR margins, MCS thresholds, BS alternatives, and communication-equivalent neighboring beams. This paper proposes QuaMoE-DRF, a quality-aware multimodal dynamic radio map forecasting framework for proactive beam and rate adaptation in ISAC networks. Its core representation is a future beam-SINR field. We show that the full multi-BS beam-SINR field is sufficient for finite-codebook threshold-rate BS, beam, MCS, goodput, and outage decisions. For tractability, the implemented model learns a compact reference-BS local field, complemented by BS-level supervision, joint BS--beam supervision, and latent network context; we also clarify that this compact projection alone is not sufficient for BS association. QuaMoE-DRF fuses static geometry, event-like motion observations, structured sensing states, and wireless history through a quality-aware mixture-of-experts module motivated by inverse-variance fusion under heteroscedastic modality errors. It jointly predicts communication-oriented map channels and proactive BS, beam, and MCS decisions. On a dynamic multi-BS and multi-UE urban benchmark, QuaMoE-DRF achieves 402.5 Mbps effective rate, 0.0417 outage probability, and 0.1836 map RMSE, improving the effective rate by 5.67% and reducing outage by 8.35% over the strongest completed effective-rate baseline. The current validation uses labels from a compact blockage/path-loss simulator, with ray tracing used only for calibration and sanity checking.
