吸着位置と胴体の変形を一緒に探す、多節ソフトロボットの移動計画

FlexWorm: Primitive-augmented Hybrid Contact-motion Planning for Suction-based Multi-segment Deformable Robots

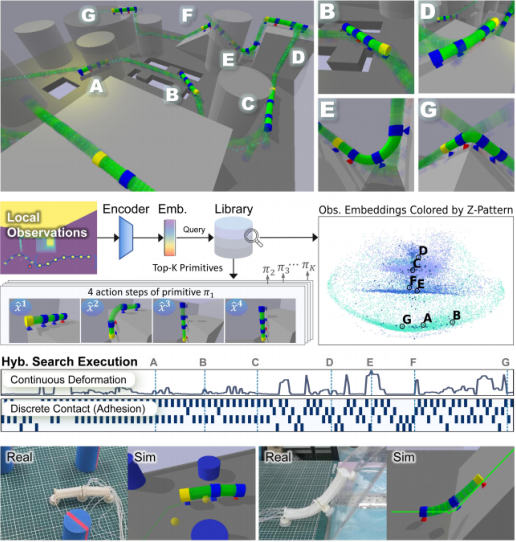

Multi-segment suction-based soft robots are promising for inspection and maintenance in confined or fragile environments, but existing approaches still depend heavily on manually designed gaits and environment-specific motion scripts. This work presents a planning framework for serial multi-segment soft robots with deformable body segments and boundary suction pads. The formulation targets full 3D navigation on complex surfaces and explicitly handles discrete adhesion switching and continuous body deformation under geometric, collision, and quasi-static feasibility constraints, while remaining agnostic to the specific actuation realization used to produce segment deformation. Its core, block-wise IK hybrid search (IKHS), performs best-first search over feasible adhesion transitions while solving inverse kinematics only on induced free blocks. On top of IKHS, primitive-augmented hybrid search (PaHS) uses a learned observation--primitive embedding to retrieve short validated motion segments for fast local proposal, with fallback to standard IKHS branching when retrieval fails. In simulation, the framework consistently outperforms controlled baselines in planning success, transition quality, and efficiency across diverse terrains. PaHS matches IKHS in success rate while substantially reducing planning time. Repeated hardware experiments on a pneumatic multi-segment soft robot further demonstrate executability and online recovery under actuation and adhesion uncertainty.
