二輪で自立する運搬ロボットを、外部カメラの誘導と機体上の高速制御で動かす

LQR-ArUco Fusion: Robust Hierarchical Control for Navigation and Asymmetric Manipulation in Two-Wheeled Robots

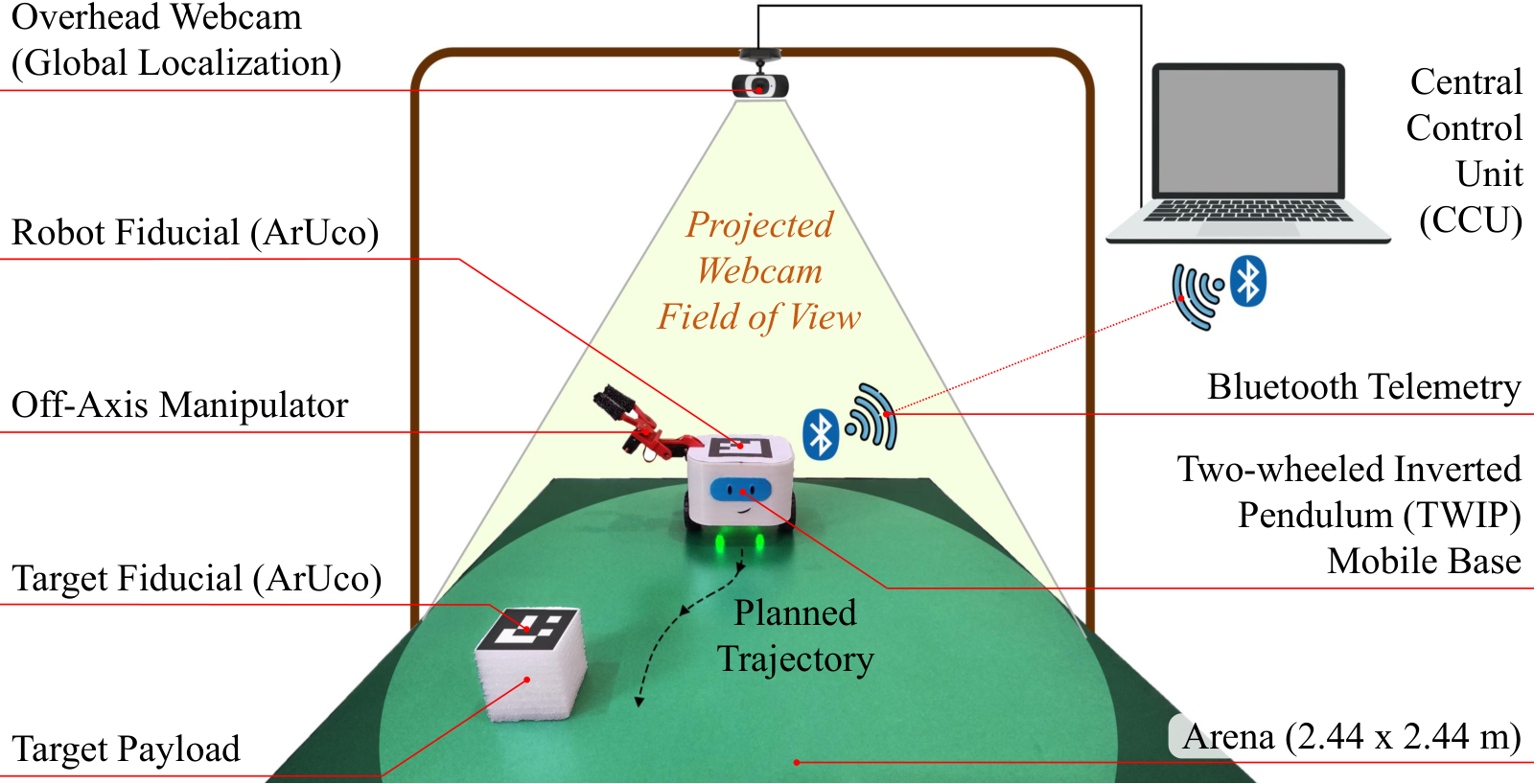

We propose a hierarchical control framework to address severe dynamic instabilities and navigational drift that arise when a two-wheeled inverted pendulum (TWIP) robot attempts asymmetric object manipulation. While two-wheeled platforms are highly manoeuvrable, their constant balancing adjustments make onboard odometry highly unreliable for precise navigation. Furthermore, the addition of a side-mounted robotic arm introduces unactuated lateral roll moments when a payload is lifted, a challenge heavily compounded on uneven terrain. To solve these coupled problems, our architecture divides the workload. An offboard vision system tracks overhead ArUco markers to provide high-latency global waypoint navigation, bypassing odometry drift. Simultaneously, a low-latency onboard control loop rejects active physical disturbances using inertial and encoder data. In our physical experiments, this dual-loop approach enabled the custom-built robot to navigate accurately, reject transient impacts from speed bumps, adapt to a dynamic seesaw ramp, and carry a payload securely without falling over its narrow wheelbase.
