分子の環や結合構造を文法へ変えるHGR、妥当性を保ちながら生成

Higher-order Grammar Representation

保存した記事を見るこのブラウザに保存します。無料会員で端末間の同期・フォルダ整理
原論文の図

Higher-order Grammar Representationの原論文から掲載した図です。細部はクリックして拡大できます。

原論文の図の説明を読む

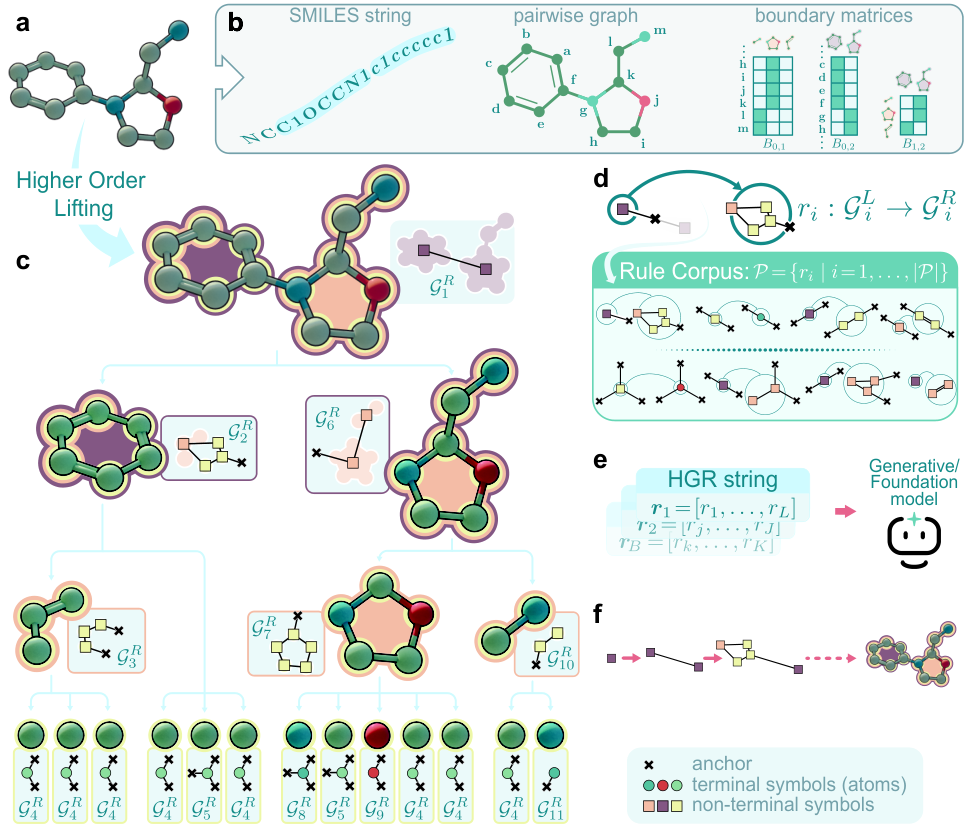

Figure 1: Overview of molecular representations and our HGR framework. a , Example molecule used throughout the schematic. b , Representative molecular representations, illustrated by a SMILES string, a pairwise atom–bond graph and higher-order boundary matrices such as B 0 , 1 B_{0,1} , B 0 , 2 B_{0,2} and B 1 , 2 B_{1,2} , which encode incidence relations. c , Higher-order lifting produces a combinatorial complex that encodes the molecule’s hierarchical higher-order topology, with its cells forming a contraction hierarchy. For clarity, each cell is annotated only with the right-hand-side graph 𝒢 i R \mathcal{G}^{R}_{i} of its associated rule. d , Each production rule r i : 𝒢 i L → 𝒢 i R r_{i}:\mathcal{G}^{L}_{i}\rightarrow\mathcal{G}^{R}_{i} maps a left-hand-side interface graph that specifies a non-terminal site and its ordered anchor interface to the corresponding right-hand-side local graph. Distinct rules induced across the molecular library form the shared corpus 𝒫 = { r i ∣ i = 1 , … , | 𝒫 | } \mathcal{P}=\{r_{i}\mid i=1,\ldots,|\mathcal{P}|\} . e , HGR serialises each complex as an ordered string 𝒓 \bm{r} of reusable rule tokens and thereby provides a common input representation for diverse molecular-learning models, such as generative and foundation models. f , Starting from the start symbol S S , successive rule applications replace selected non-terminal sites with their corresponding 𝒢 i R \mathcal{G}^{R}_{i} and reconnect boundary bonds through the anchor interfaces, thereby reconstructing the combinatorial complex and its associated molecular graph.

出典:Higher-order Grammar Representation / arXiv ↗

概要

  • 高次の分子構造を生成規則の列へ変換し、標準の系列モデルで扱う。
  • 環構造を豊富に含む118万分子のRingDivと、多様性指標RDIを導入した。
  • 5生成評価でRDKit妥当性100%と良好な分布整合を報告した。
補足:編集した模式図で仕組みを確認する

VISUAL EXPLAINER

図でつかむ、Higher-order Grammar Representationの仕組み

左から右へ読む
  1. 01分子の高次構造
  2. 02文法規則の列
  3. 03潜在表現の生成
  4. 04分子構造へ復号

原論文の説明をもとにした模式図です。処理の細部は省略しています。

研究の背景

HGRは、分子内の環や繰り返し構造を文法の規則列として表す。原子と結合の列や通常のグラフは局所的な関係を扱いやすいが、環のつながり方など高次の構造を明示しにくい。

高次表現を直接計算する方法には、処理負担と有効な分子への復号の難しさがある。本研究は構造の表現力を保ちつつ、一般的な系列モデルで学習・生成できる形式へ移し、妥当性と分布の再現を同時に評価する。

手法

分子を、原子や結合に加えて高次のまとまりを持つ組合せ複体へ持ち上げる。それを文脈自由な高次文法で解析し、再利用可能な生成規則の短い列へ変換する。実在分子の部分グラフから規則を作り、記録した結合と接続面を維持して、原子の結合数を保つ復号を行う。

生成には文法に合わせた変分自己符号化器を使う。圧縮した潜在空間から直接標本を取るHGR-VAEと、そこで拡散生成するHGR-LDFの2経路を用意し、最後に文法デコーダが分子へ戻す。例えば複数の環が結合した分子を、原子の羅列だけでなく環構造を組み立てる規則の列として生成する。

新規性

高次の構造を規則列へ直列化し、系列モデルとの互換性と構造の表現力を両立する点が特徴だ。生成規則が分子の組み立て過程も残すため、最終グラフだけでは見えにくい構造の由来を記録できる。

環が単純な分子へ偏った評価を補うRingDivも提案する。RingDivは118万分子を持ち、精選したRingDiv300kと、環構造の範囲を測るRDIを合わせて提供する。

従来手法との違い

比較には拡散方式DiGress、DeFoG、高次構造を扱うHoG-Diff、構文妥当性を保つSELFIES-VAEを含む。SELFIES-VAEも100%の妥当性を達成するため、有効な分子を出す割合だけでは差を捉えられない。

HGRは分布整合でも高い成績を示すが、GuacaMolのKL指標では最強の拡散比較に及ばない。FCDはRingDiv300kでは低いほど良い距離、GuacaMolでは高いほど良い変換済み得点であり、数値の向きを区別する必要がある。

実験結果

著者らは5生成評価でRDKit妥当性100%を報告する。RingDiv300kでHGR-LDFのFCDは0.4652、SELFIES-VAEは2.4266。GuacaMolのFCD得点は84.4で、HoG-Diffの78.3を上回った。自らの実験値は3乱数条件の平均である。

要旨では、表現学習のHGR-FMが7つのMoleculeNet評価の平均AUCで最良となり、強い比較方式に対してプロービング8.3ポイント、全面追加学習3.3ポイント改善したとする。生成の妥当性と予測能力は別の評価軸となる。

応用の可能性

編集上の応用案 · 論文が実証した用途とは区別しています。

編集上の応用案は、製造用の機能性材料候補を探索する前段階だ。既知分子の学習集合と求める環構造の範囲を整理し、有効な分子候補と生成規則の記録を出力する流れを考える。

担当者は候補の結合妥当性だけでなく、環の多様性と元分布への近さを確認する。生成した分子を次の物性予測や実験候補の検討へ回すが、文法上有効であることを性能や合成可能性の証明とは扱わない。

応用先の候補からNauhに相談できます。

導入時の検証

導入時の検証案 · 対象データでの再評価が必要です。

導入時の検証案では、対象材料の小さな分子集合で通常の系列生成を基準にする。文法の構築と復号を確認した上で、同数の候補を生成し、妥当性、重複、新規性、FCD、環構造の多様性を測る。

訓練で見ていない環構造を含む評価集合を残し、候補が既知の規則の組み替えに偏らないか点検する。物性の予測は別の評価として追加し、構造表現の改善が用途上の候補品質につながるか確かめる。

限界と課題

著者らの妥当性はRDKitでの構造検証であり、すべての指標で一位という結果ではない。GuacaMolのKL指標の例外が示すように、分布整合の見方によって優位性は変わる。

編集上の確認事項は、学習分子から誘導した文法が扱える構造の範囲、合成の難しさ、対象物性の再現だ。高次構造を表せても、望む性質や実験の成功が保証されるわけではなく、候補の検証を段階的に行う必要がある。

技術
応用先の候補
研究内容と応用案に基づく分類です。業界での導入実績を示すものではありません。

出典

元のタイトル・要旨を確認する(英語)

Higher-Order Molecular Grammars for Generative and Foundation Models in Chemistry

Molecular learning models are strongly shaped by their underlying representations. Yet standard sequential and graph formalisms struggle to explicitly encode higher-order topology, such as ring systems and recurring motifs. Existing higher-order representations can capture these structures directly, but they are often computationally demanding and difficult to decode into valid molecules. Here, we introduce Higher-order Grammar Representation (HGR), a principled, topology-aware framework that lifts molecules to combinatorial complexes and parses each complex into a compact sequence of production rules under a context-free higher-order grammar. By serialising higher-order topology into rule sequences, HGR makes these structures directly compatible with standard sequence models, avoiding the computational overhead of explicit higher-order encodings while preserving topological expressiveness. To reduce benchmark bias towards simple ring systems, we construct RingDiv, a ring-enriched benchmark containing 1.18 million molecules, including the curated RingDiv300k subset, and introduce the ring diversity index (RDI) to quantify ring-system coverage. In molecular generation, HGR-based models uniquely combine 100% validity by construction with leading distributional alignment, ranking first in FCD on all five generation benchmarks. In representation learning, HGR-FM achieves the highest mean AUC across seven MoleculeNet benchmarks under both transfer protocols, improving on the strongest baseline by 8.3 and 3.3 AUC points under probing and full fine-tuning, respectively. Collectively, these results establish HGR as an efficient higher-order representation for molecular generation and transferable representation learning.
