新着研究 / Robotics / Computer Vision
EyeRobot 2.0:注視点を動かし手首カメラなしで両手操作を支援
EyeRobot 2.0
EyeRobot 2.0の原論文から掲載した図です。細部はクリックして拡大できます。
原論文の図の説明を読む

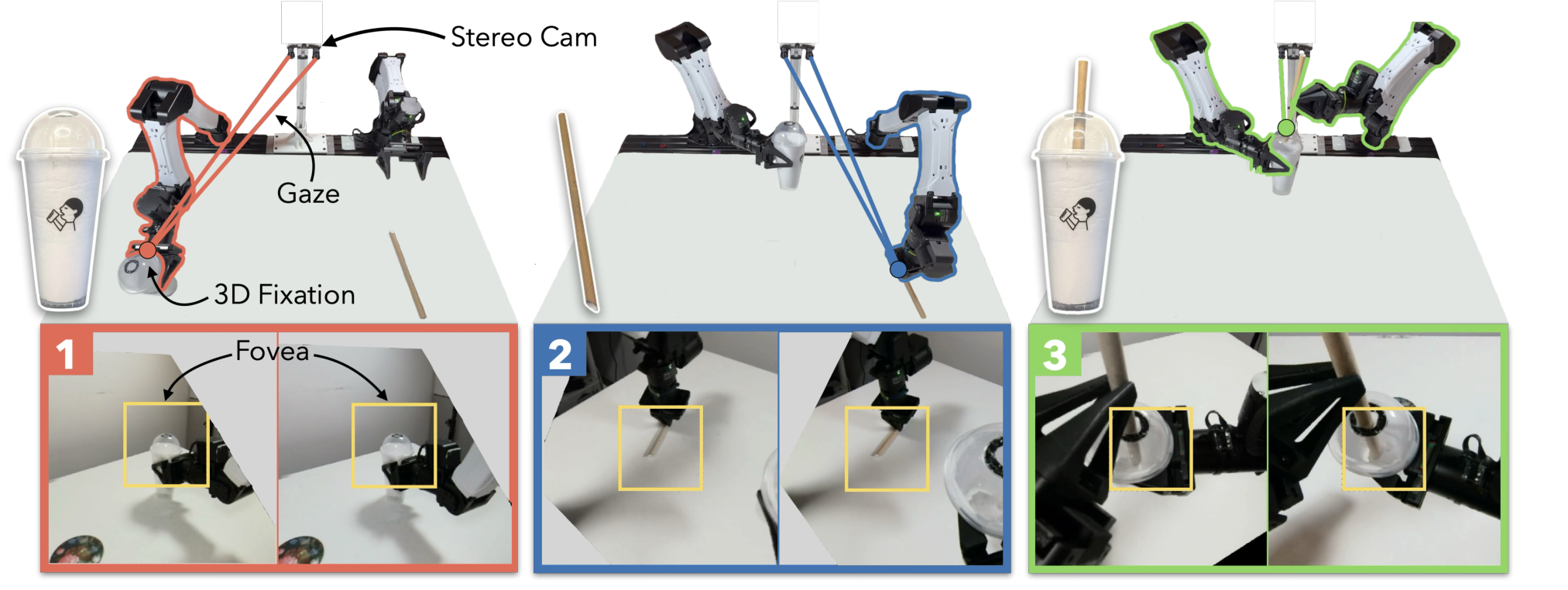

Figure 1: EyeRobot 2.0 enables fine-grained bimanual manipulation like inserting a straw into a boba cup using only a fixed stereo camera. It coordinates a sequence of gaze targets, for example here first at the boba cup, then the straw, then the insertion point. Gaze targets are output from a semantic object selector, which conditions a low-level gaze policy to servo precisely. Its design draws inspiration from human foveated vision by leveraging multi-resolution image crops to provide high detail where the policy gazes.
概要
- 左右の視点を動かして3Dの注視点を中心に置き、画像中心へ視覚処理を集中する。
- 注視を実行する政策と注視点を選ぶ政策を階層化し、把持の表現も注視点基準にする。
- 把持物で手首カメラが隠れる条件では、成功率48%対22%を報告する。
補足:編集した模式図で仕組みを確認する
VISUAL EXPLAINER
図でつかむ、EyeRobot 2.0の仕組み
- 01操作の進行状態
- 023D注視点の選択
- 03視点と画像処理の集中
- 04両手の操作
原論文の説明をもとにした模式図です。処理の細部は省略しています。
研究の背景
EyeRobot 2.0は、一つのステレオカメラだけで細かな両手操作を行うため、カメラの視線を能動的に動かす。手首カメラは操作部分を近くから見られるが、把持した物で視野が隠れる場合がある。
一方、固定したステレオ視点だけでは、必要な場所へ十分に注目できず、標準的な政策の成功率が低下する。人が作業の進行に応じて視線を変えるように、どこを見るかと手の動きを協調させることを研究している。
手法
二つの視点を旋回し、3Dの注視点を画像中心へ置く。中心付近には多くの視覚トークンを割り当てる中心窩的な処理を行い、作業に必要な特徴へ計算を集中する。低位の政策は目標物に応じて視線を合わせ、高位の選択器は作業の進行から次の注視点を決める。
両方を実環境のデータによる強化学習で訓練し、注視点の選択器は模倣学習の把持政策と共同で学ぶ。さらに把持器の情報を注視点に対する位置・姿勢の座標系へ変換し、学ぶ動作の分布を整理する。例えば見たい対象を中央に保ちながら、その対象を基準に手の動きを表す構成である。
新規性
カメラを動かすだけでなく、注視点の選択、視覚処理の集中、操作表現の基準を合わせた点が中心である。手首カメラを外した場合に生じる視覚情報の不足へ、能動視線で対応する。
視線を固定の手順で動かさず、作業の進行とともに選ぶ。低位の視線合わせと高位の目標選択を階層化して、細かな操作と視線の協調を学習する構成になっている。
従来手法との違い
同じデータで学習した受動ステレオと、頭部視点に手首カメラを加える政策と比較する。標準政策で手首カメラを除くと実機成功率が52%から27%に低下したと報告する。
EyeRobot 2.0は手首視点が明瞭な条件で69%対64%、把持物で隠れる条件で48%対22%を報告する。条件ごとの値であり、単純に全課題の平均へまとめず、どの視覚条件で効果があるかを読む必要がある。
実験結果
七つの実環境課題と六つのシミュレーション課題の遠隔操作データを収集し、実機1,000回超、シミュレーション1,800回超の試行で比較する。著者らは受動ステレオより実環境で40%、シミュレーションで20%上回ったと記す。
この表現を条件別の成功率のポイント差と混同しないことが必要である。注視と操作を同じ学習データの比較で評価しているが、未知の物体や別のカメラ構造で同じ改善が得られるかは別の検証となる。
応用の可能性
編集上の応用案 · 論文が実証した用途とは区別しています。
編集上の応用案として、部品を両手で組み合わせる作業の視覚支援を考える。入力はステレオ画像と作業状態、出力は注視点と把持操作の候補で、接続部分を中心に捉えながら進める。
手首付近の視点が把持物に隠れやすい作業を対象にし、固定視点との違いを調べる。担当者がどの時点で何を見たかを再生できるようにし、視線選択の失敗と操作政策の失敗を区別して改善する。
導入時の検証
導入時の検証案 · 対象データでの再評価が必要です。
導入時の検証案では、一つの両手課題で受動ステレオを基準にする。手首カメラが明瞭な条件と遮蔽される条件を分け、能動視線の成功率、作業時間、注視点の選択を比較する。
視点を動かす効果と中心へ計算を集める効果を分ける比較も行う。物体の位置や大きさを変え、注視が外れた割合を記録する。学習データ量と制御条件をそろえ、追加の視線制御に伴う時間も含めて評価する。
限界と課題
結果は所定の実機・模擬課題とカメラ機構で得られており、手首カメラがあらゆる作業で不要と示すものではない。視線を物理的に動かし、注視点を制御できる構成が前提となる。
編集上の確認事項は、急な対象移動、複数の注目点、カメラ旋回の遅れへの対応である。両手が異なる場所を同時に扱う場面や、照明と反射が変化した場面でも、注視選択と動作の協調が維持できるかを確認したい。
出典
元のタイトル・要旨を確認する(英語)
EyeRobot 2.0: Active Gaze for Precise Manipulation without Wrist Cameras
Inspired by human vision, we introduce a framework using active gaze to enable fine-grained bimanual manipulation with only a single stereo camera. EyeRobot 2.0 physically attends to a 3D fixation point in the scene by swiveling two eye viewpoints to center their gaze on it. The resulting images are processed foveally by allocating more visual tokens to the image centers, focusing computation on task-relevant features. Such Active Visual Fixation (AVF) requires carefully coordinated gaze during task execution, which we accomplish hierarchically by first training a low-level gaze servoing policy conditioned on a goal object, then training a target selector which emits fixation goals based on task progress. Both modules are trained with RL on real-world data: the first is trained with a dense geometric reward and the second co-trains with the BC gripper policy which allows it to discover fixation sequences that can resemble a human's fixation sequence while performing the task. EyeRobot 2.0 further takes advantage of fixation by canonicalizing gripper information into a fixation-relative SE(3) frame, which compacts the size of the action distribution to learn. We collect teleoperation data for 7 real-world and 6 simulated tasks, and conduct over 1000 physical and 1800 simulated robot trials comparing EyeRobot 2.0 against passive stereo and ego + wrist camera policies trained on the same data. Removing wrist cameras is costly for standard policies: with only passive stereo, real-world success drops from 52% to 27%. EyeRobot 2.0 closes this gap with only stereo, outperforming passive stereo by 40% in real and 20% in sim. It matches ego + wrist policies when their wrist views are clear (69% vs. 64%), and more than doubles their success when grasped objects occlude the wrist cameras (48% vs. 22%)
